Description

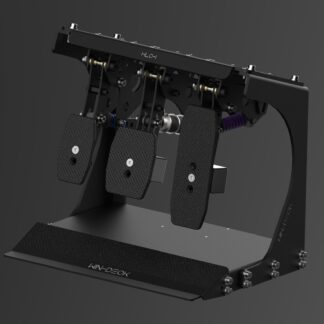

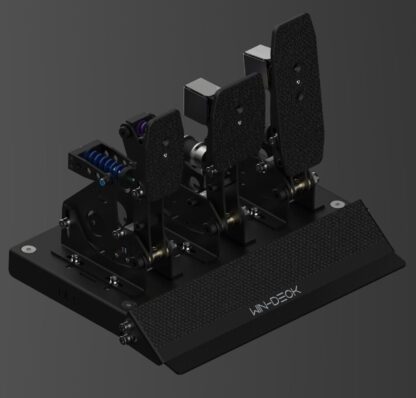

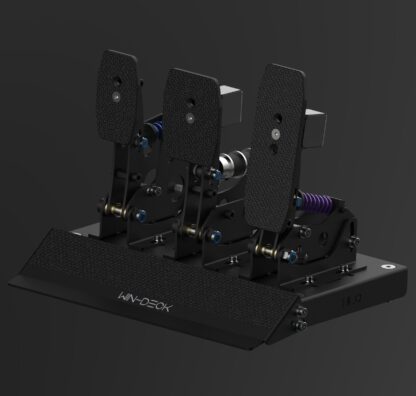

Welcome to the New Standard for Pedals

Easy Adaptability for All Ergonomic Parts:

Our pedals are not only movable on the baseplate but also adjustable in angle, spring strength, and maximum travel distance. The pedal faceplates can be mounted in three different positions, and the heel plate is also adjustable in angle.

Design Inspired by Manufacturing Systems:

All standard parts used are from industry manufacturers, ensuring lifelong usability.

Brake like You Mean It – Our Pedals Can Handle It:

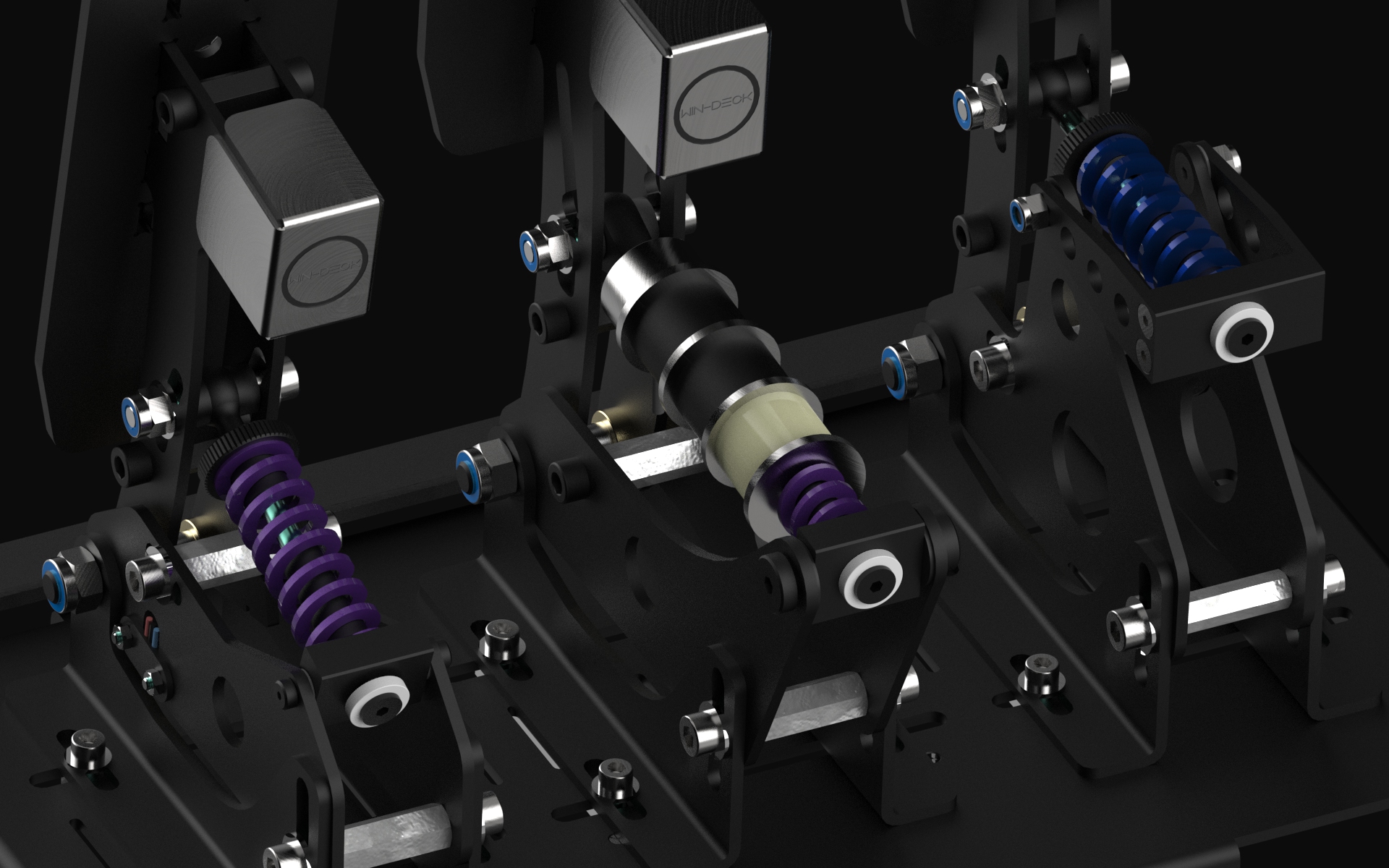

For maximum precision under braking, we use an inline load cell rated for a maximum weight of up to 200kg. A helical compression spring is compressed while actuating the brake pedal. The elastomer springs accurately represent the back pressure that arises when pushing a real brake pedal. This ensures maximum reproducibility and accuracy. You can also adjust the brake force by moving the bearing point.

Throttle Control So Smooth, You’ll Think You’re Driving on Clouds:

The throttle pedal follows a simple but reliable design that ensures activation characteristics like a real throttle. A helical compression spring, which increases linearly in strength, is used to reset the pedal to its resting position. The resistance can be adjusted via the knurled nut and the movable bearing point. To measure the traveled distance, we use a contactless analog Hall sensor that is easily accessible from the outside should it ever be damaged.

Clutch It Like a Pro – No Stalling Allowed:

The clutch pedal design is similar to the throttle pedal with the exception of an extended bearing element. This element folds up when you reach a certain activation point. At this point, the resistance sharpens before it gradually eases, just like in a real clutch.

Get a Grip – Our Anti-Slip Surface Has Got You Covered:

We use an anti-slip material on all faceplates to increase friction compared to the basic material underneath, so you don’t just slip off the pedal when things get intense.

Feel the Road – Rumble Motors for Haptic Feedback:

Both the brake and throttle pedals are equipped with rumble motors that provide haptic feedback based on in-game events. This feature enhances the immersive experience by letting you feel the road and the car’s behavior, giving you a more realistic driving sensation.

Connectivity Inside and Out:

Our custom-developed controller board, compatible with any Windows PC, comes pre-calibrated and only requires a USB A to B cable which is included. Calibration of the individual axes can be done via the Windows game controller calibration tool. All pedals are easily removable. After unscrewing the pedal, you can easily unplug the RJ45 plug used to connect each pedal to the baseplate. A separate connector on the inside connects the baseplate to the command center. This guarantees maximum accessibility and repairability at all times.

High-Quality Materials Only:

The material used for all sheet metal parts is high-grade aluminum, ensuring high stability and endless longevity. All standard parts are made out of treated steel or aluminum.

Easily Mountable on Any Rig:

The screws to mount the rig are easily accessible from the top of the pedals.

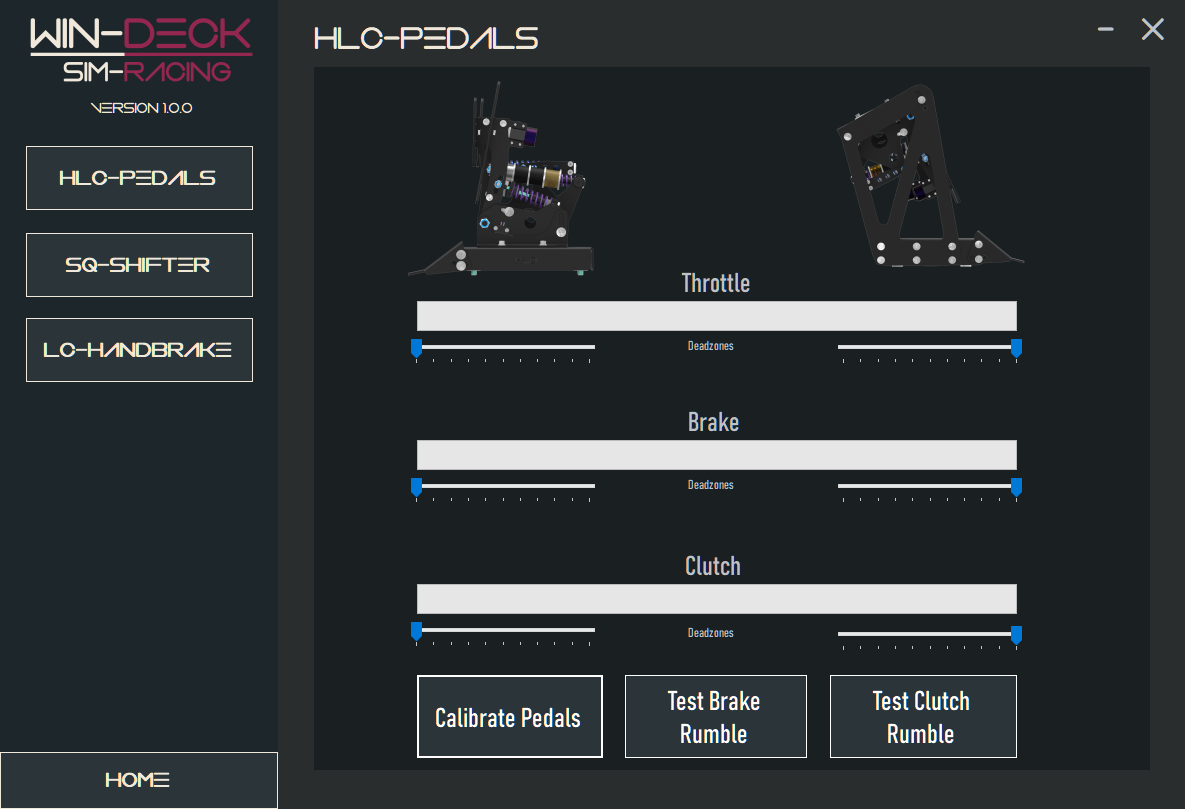

Configure with Ease – Our Custom Driver and GUI:

Setting up your pedals has never been easier with our custom-developed driver and intuitive GUI. You can configure each pedal, adjust dead zones, and test the rumble motors all within the user-friendly interface. This ensures that your pedals perform exactly how you want them to, providing a personalized and precise driving experience.
